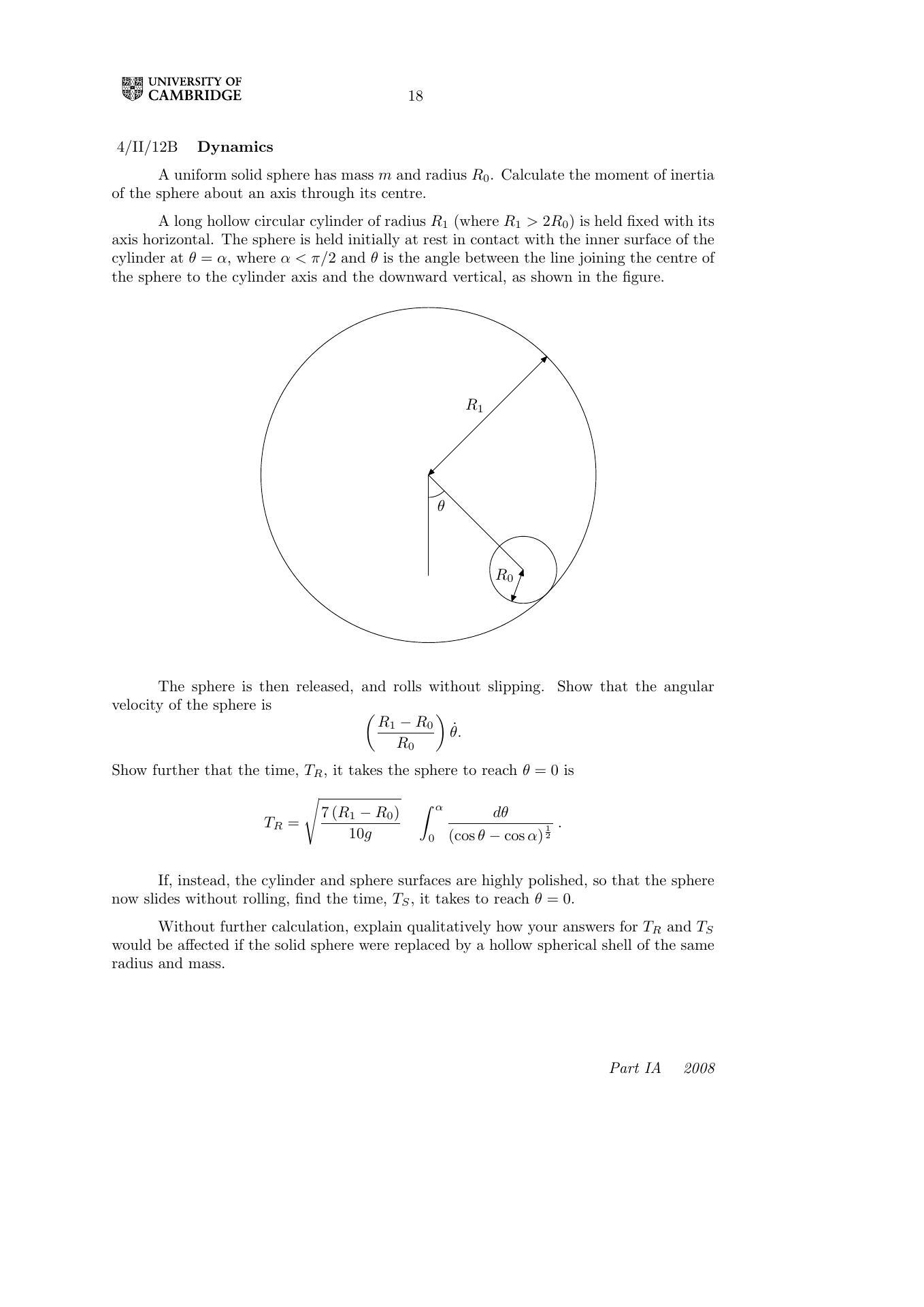

4.II.12B

Dynamics | Part IA, 2008

A uniform solid sphere has mass mm and radius R0R_{0}. Calculate the moment of inertia of the sphere about an axis through its centre.

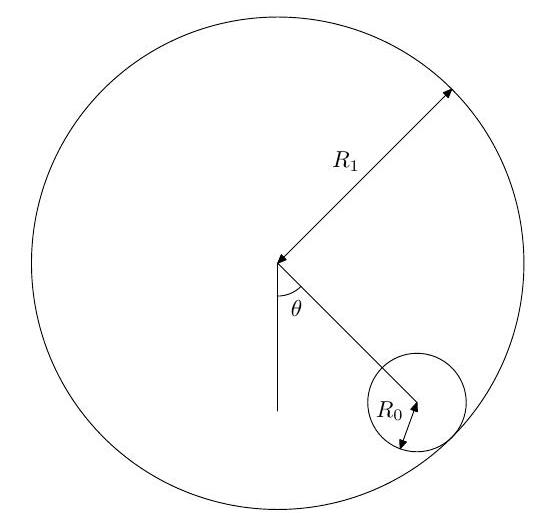

A long hollow circular cylinder of radius R1R_{1} (where R1>2R0R_{1}>2 R_{0} ) is held fixed with its axis horizontal. The sphere is held initially at rest in contact with the inner surface of the cylinder at θ=α\theta=\alpha, where α<π/2\alpha<\pi / 2 and θ\theta is the angle between the line joining the centre of the sphere to the cylinder axis and the downward vertical, as shown in the figure.

The sphere is then released, and rolls without slipping. Show that the angular velocity of the sphere is

(R1R0R0)θ˙.\left(\frac{R_{1}-R_{0}}{R_{0}}\right) \dot{\theta} .

Show further that the time, TRT_{R}, it takes the sphere to reach θ=0\theta=0 is

TR=7(R1R0)10g0αdθ(cosθcosα)12T_{R}=\sqrt{\frac{7\left(R_{1}-R_{0}\right)}{10 g}} \quad \int_{0}^{\alpha} \frac{d \theta}{(\cos \theta-\cos \alpha)^{\frac{1}{2}}}

If, instead, the cylinder and sphere surfaces are highly polished, so that the sphere now slides without rolling, find the time, TST_{S}, it takes to reach θ=0\theta=0.

Without further calculation, explain qualitatively how your answers for TRT_{R} and TST_{S} would be affected if the solid sphere were replaced by a hollow spherical shell of the same radius and mass.
